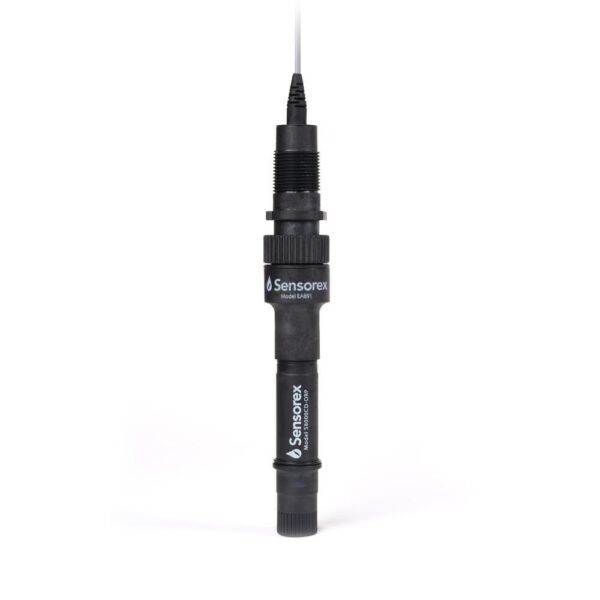

Name: S8100 - Process ORP Sensor, Submersion
SKU: S8100-ORP-1
Availability: InStock

$436.83 – $446.89

Online Sensors

S8000 Modular Sensor System

S8100 - Process ORP Sensor, Submersion

Parameters & Applications

Product Information

Our S8000 series ORP sensors deliver the most reliable online ORP monitoring in a unique, modular package that minimizes total cost of ownership. CThis submersion ORP sensor can be changed in a few seconds with no tools or re-wiring required by swapping the S8000CD-ORP Quick Change Replacement Cartridge.

Reliable performance in demanding applications: Liquid flow naturally cleans the flat ORP measurement surface
Lightning fast sensor changes: Modular design allows replacement cartridges to be changed in seconds without tools
Perfect for pressurized applications: Sealed, no maintenance reference design
Low total cost of ownership: All mounting hardware is reuseable. Only replace the quick-change sensor cartridge
One year limited warranty: We stand behind all our products with the Sensorex Guarantee

CA Residents: Prop 65 WARNING(S)

For optimal shelf life, store sensors at 15-30°C.

Our S8000 series of ORP sensors deliver the most reliable online ORP monitoring in a unique, modular package that minimizes total cost of ownership. Customize to exactly what you need for your application with optional electronic amplifier, 4-20 mA or MODBUS/RS485 module, and custom automatic temperature compensation configurations. Sensors can be changed in a few seconds with no tools or re-wiring required by swapping the S8000CD-ORP Quick Change Replacement Cartridge.

Reliable performance in demanding applications
Lightning fast sensor changes
Perfect for pressurized applications
Low total cost of ownership
One year limited warranty

Optional Accessories:

Differential amplifier module for applications with ground loop issues
Unity gain amplifier module transmits sensor signal up to 1000ft
4-20mA or RS485 transmitter module to connect to a PLC, SCADA or controller with 4-20mA or RS485 input card

Connector

Tinned Leads
BNC

Cable Length

10 Feet (3 Meters)
20 Feet (6 Meters)

Clear

Compare

SKU: S8100-ORP-1 Categories: Online Sensors, ORP, S8000 Modular Sensor System

Specifications

Measurement Range: +/- 1000mV

Temperature Range: 0-100⁰ C

Pressure Range: 0 – 100 PSIG

Body Construction: Ryton Polyphenylene Sulfide (PPS)

Connector: BNC or Tinned Leads

Cable Length: 10 feet (3 meters) or 20 feet (6 meters)

Warranty: One year limited warranty
