$1,626.67

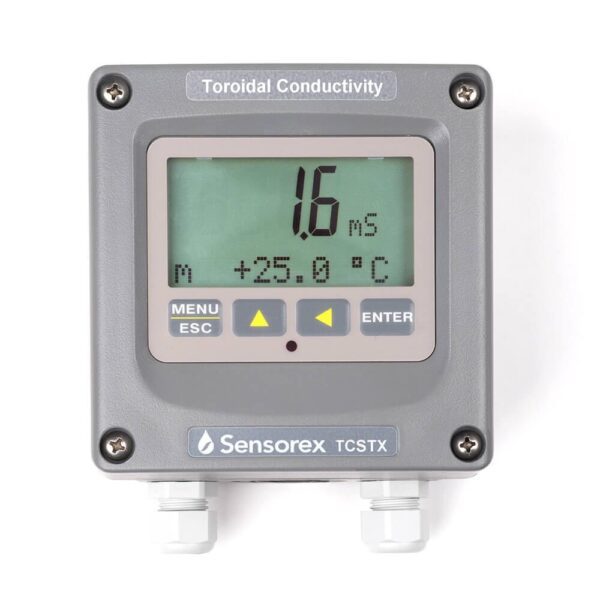

TCSTX - Conductivity Transmitter with Local Display, Toroidal
Product Information
_______________________________________
Our TCSTX online toroidal conductivity meter and 4-20mA transmitter is built for water treatment monitoring in aggressive chemical and coating applications. The unit features isolated outputs with user-programmable temperature compensation. Durable construction with enclosure rated at NEMA 4X (IP65). Simple installation for wall, pipe, panel, or rail mounting. Use with our TCS3020 Toroidal Conductivity Sensor or TCSP series PEEK Toroidal Sensors for online conductivity monitoring with minimal maintenance.
- Reliable process monitoring: Displays conductivity & process temperature values simultaneously
- Simple system integration: Loop-powered (16-35V DC) with isolated 4-20mA output signal
- Perfect for use in all environments: LCD display with NEMA 4X, IP65 enclosure
- For use with toroidal conductivity sensors: Online conductivity measurement with minimal maintenance
- One year limited warranty: We stand behind all our products with the Sensorex Guarantee
Note: Transmitter is only compatible with sensors with tinned leads.
CA Residents: Prop 65 WARNING(S)
Our TCSTX online toroidal conductivity meter and 4-20mA transmitter is built for water treatment monitoring in aggressive chemical and coating applications. The unit features isolated outputs with user-programmable temperature compensation. Durable construction with enclosure rated at NEMA 4X (IP65). Simple installation for wall, pipe, panel, or rail mounting. Use with our TCS3020 Toroidal Conductivity Sensor for online conductivity monitoring with minimal maintenance.
- Reliable process monitoring
- Simple system integration
- Perfect for use in all environments
- For use with toroidal conductivity sensors
- One year limited warranty
Note: Transmitter is only compatible with sensors with tinned leads.
Specifications
Input: Accepts Sensorex TCS and TCSP sensors
Full Scale Range: 0-2,000 uS / 2.000 mS / 20.00 mS/ 200.0 mS / 2,000 mS – User selectable
Sensitivity: 0.05% of span or 0.1 uS, whichever is greater
Repeatability: 0.3% of span, or 0.1 uS, whichever is greater
Non-Linearity: 0.3% of span or 0.1 uS, whichever is greater
Zero Drift: <1% span per month, non-cumulative
Operating Conditions: -20 to 60deg C (-4 to 140 deg F), 0-95% R.H. non-condensing conditions
Storage Conditions: -30 to 70deg C(-22 to 158 deg F), 0-95% R.H. non-condensing conditions
Location: Designed for hazardous and non-hazardous areas
EMI/RFI Influence: Designed to EN 61326-1
Temperature Drift: Span or zero, 0.03% of range/degC
Stability: 0.1% of span per 24 hours
Power Requirement: 16-35V DC (2-wire device)
Warm-Up Time: 7 seconds to rated performance
Response Time: 6 seconds to 90% step input at lowest setting
Output Isolation: 600 V galvanic isolation
Filter: Adjustable, 0-9.9 minutes additional dampening to 90% step input
Enclosure: NEMA 4X (IP66) polycarbonate, wall, pipe or DIN Rail mount. Weatherproof and corrosion resistant. Dimensions = 4.4” (112mm) H x 4.4” (112mm) W x 3.5” (89mm) D.
Display: Large, high-contrast, Super-Twist (STN) LCD 4-digit main display with sign, 0.75” (19.1 mm) seven-segment characters, 12-digit alpha-numeric second line display, 0.3” (7.6mm) 5 x 7 dot matrix characters
Keypad: 4-key membrane type with tactile feedback, polycarbonate with UV coating, integral EMI/RFI static shield conductively coated window
Weight: 1lb (0.45Kg)
Conduit Openings: 2 each PG-9. Cord grips included.
Temperature Input: Pt1000RTD. ATC is user selectable 0-4%/Deg C
Maximum Cable Length: 200ft. (61.0m)
Additional information
Weight | 2.66 lbs |
---|---|
Dimensions | 12.25 × 8.25 × 4.5 in |
